Description
Technical Specification:

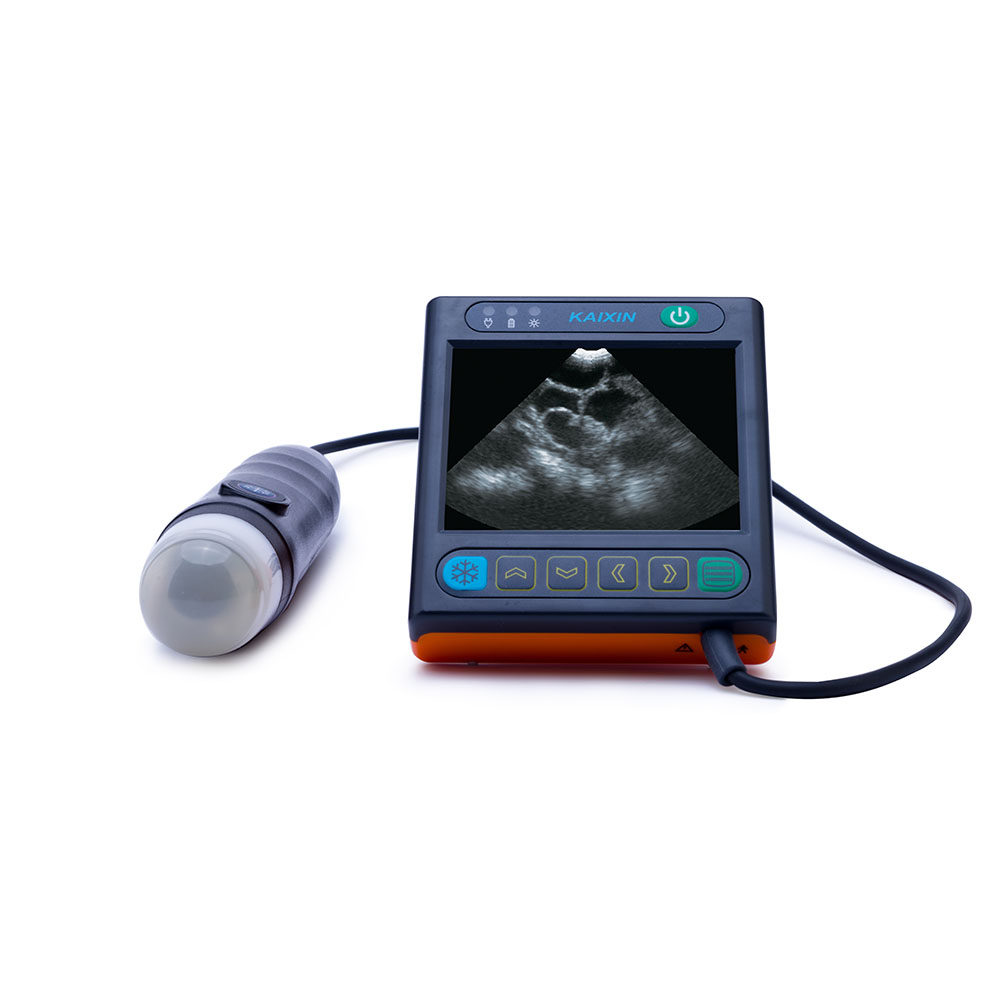

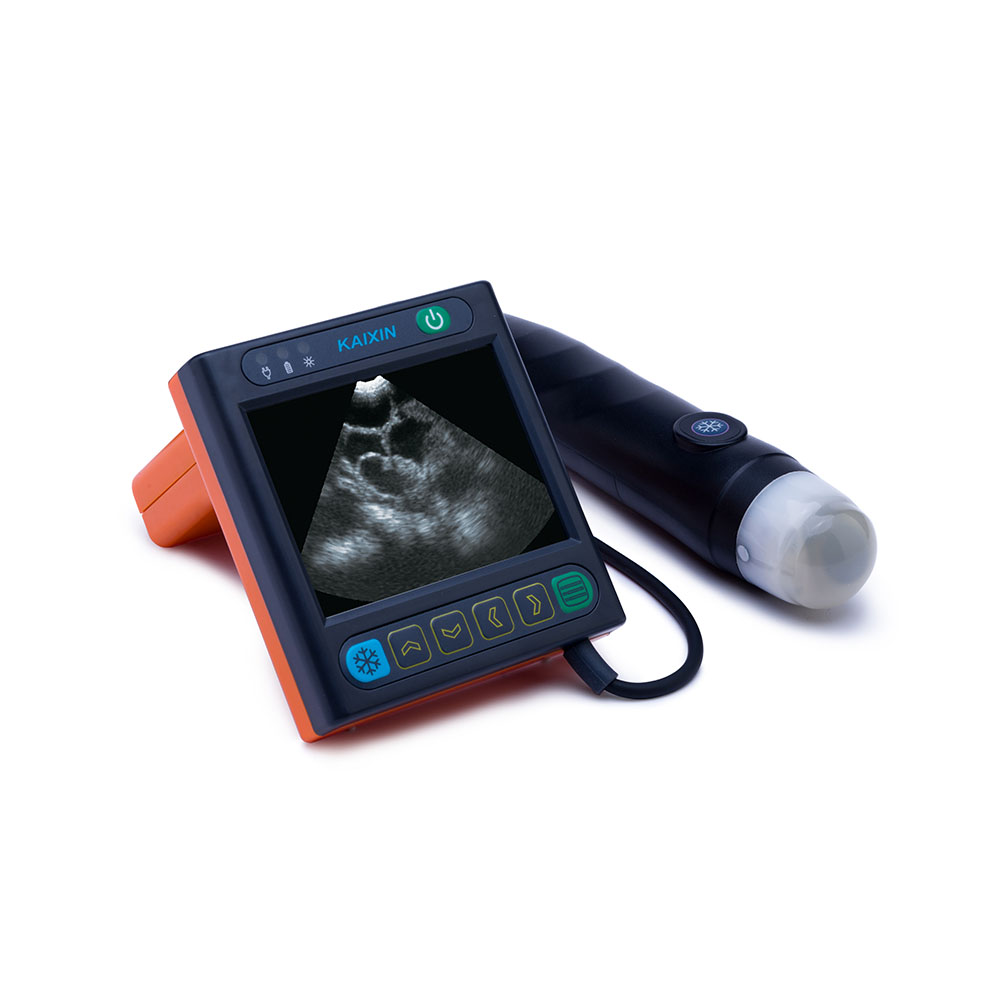

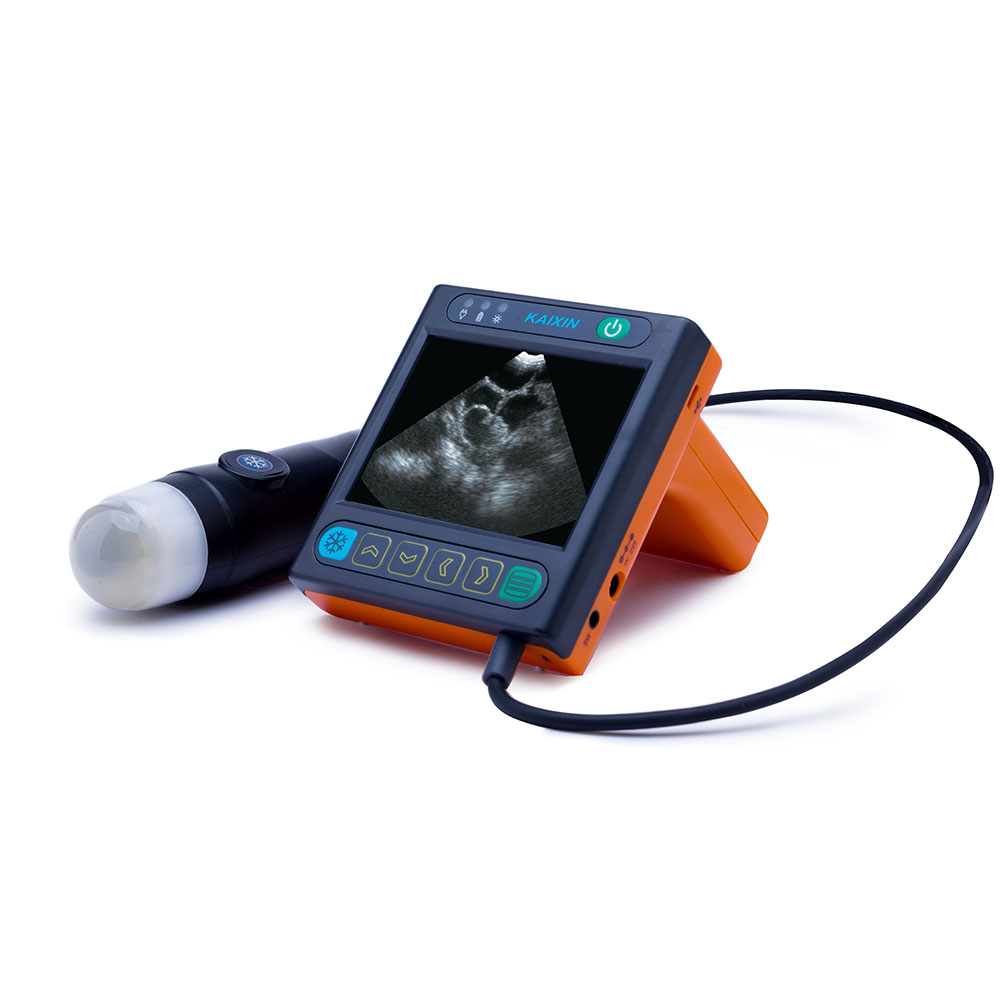

*Adopted the latest cortex-m4 embedded control system + miniaturized exclusive ultrasound
technology hardware system; MSU3 with triple function of A scan, B scan, the perfect solution
to the various needs of users;
*3.5″ high resolution color LCD, smart, light and portable,suitable for outdoor use;
*Menu interface operation, Language: Chinese/English switchable( factory defaults);
*Customized multiple languages: Chinese, English, French, German, Spanish, Portuguese;
*Gray：256
*Display mode：B, 2B, A, total 3 kinds. B mode and A mode gain range: 27 ~ 90dB
*Near field Gain: -31 ~ 0dB;
*Far Field Gain: 0 ~ 31dB;
*Dynamic range：27～90dB
*3 kinds of depth range, 126,163,200, the maximum display depth of 200mm;
*Compression curve adjustment: 4 kinds, from 0~ 3;
*Frequency: 2.5M, 3.5M;
*Frame correlation: 0 ~ 5,6 kinds;
*Pseudo-color function: 0 ~ 7,8 kinds (including black and white);

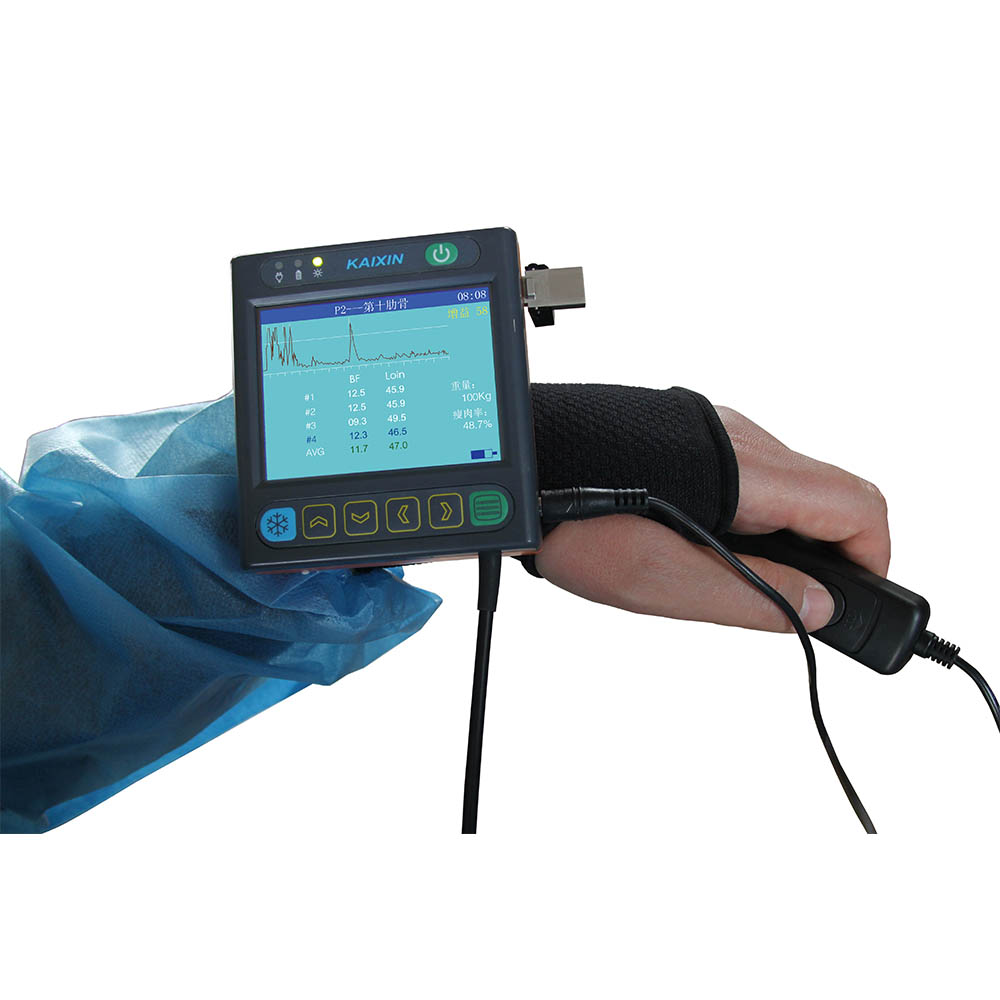

*Measure backfat thickness, loin muscle thickness and lean percentage;
*Image Storage: image or measurement data stored in the U disk;
*Scale of the image display: 3 kinds, “0” is without ruler, “1” is displayed 10mm pitch of dot
scale, “2” is displayed vertical and horizontal pitch of 10mm dot scale;
*B scan and A scan measured data can be stored in Excel table, user-friendly data management,
processing all kinds of information;
*Unique menu disappears settings function: Menu disappears automatically at a set time,
user-friendly observation image;
*Screen saver function;
*System settings probe guard time, automatically freeze, to protect probe;
*Dual power supply. Power: 100-240V ~ ± 10% 1.2-0.6A Frequency: 50-60Hz ± 1Hz;
*Battery Configuration: Large capacity (2600mAh) lithium battery can support more than 300
minutes work;
*Net Weight: 620g;
*Main unit size：90×98×25mm（length x width x height）
