Description
Main Component |
Technical Specs |
|

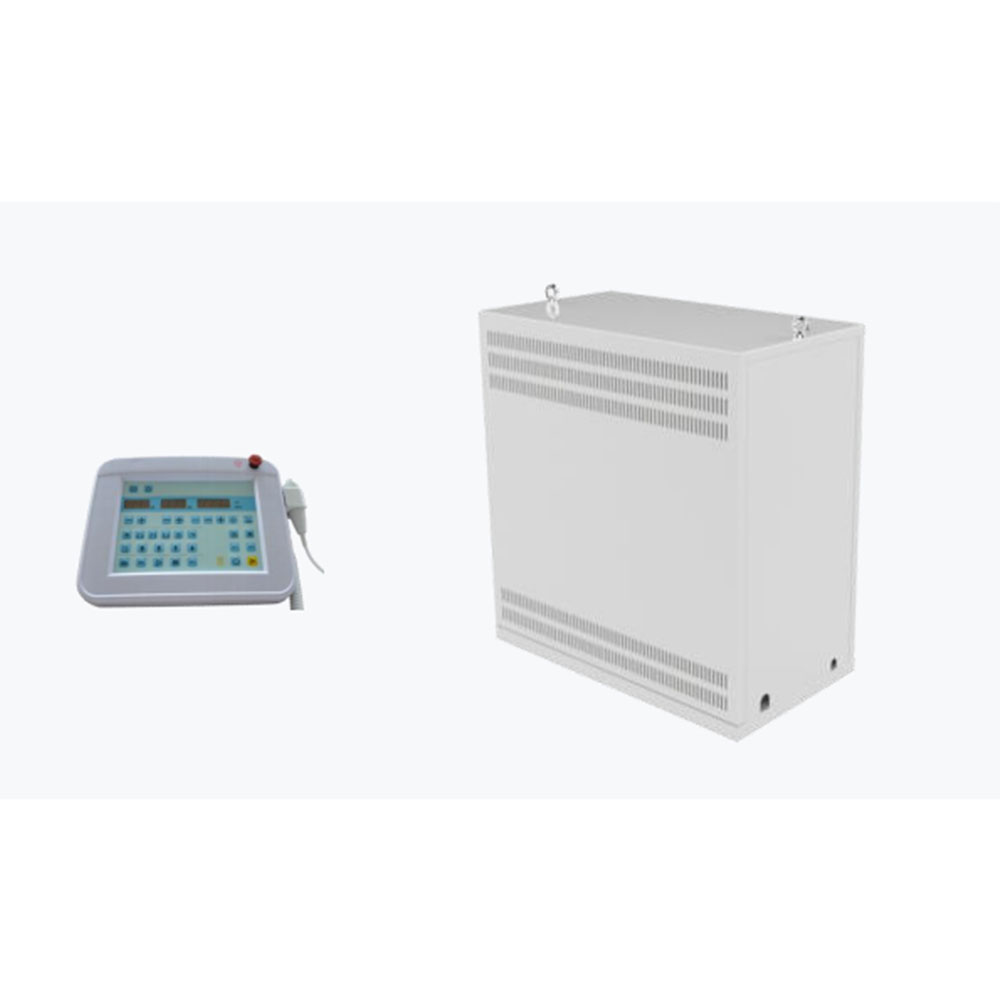

| X-ray generator (include console) | Voltage | AC220V ± 22V |
| Power | 5kW | |
| kV Range | 40～110kV | |
| mA Range | 20～100mA | |
| mAs Range | 0.2-200mAs | |
| Working Frequency | ≥40kHz | |
| Exposure time | 0.01S～4S | |
| X-ray tube | Anode heat storage | 56KHU |
| Focus | 1.8mm | |
| Inherent filtration | 1mm Al/75Kv | |
| Light source | LED | |
| Collimator | Dimension | 10.4inch |
| Light Source | LED | |
| Radiographic Table | Top Table Size | 2100X800X650mm |
| Bucky Size | 18X18inch | |
| Table longitudinal movement | ≥900mm | |
| Cassette Movement Distance | ≥500mm | |
| Vertical Chest stand | Vertical moving range | ≥1200mm |
| Bucky Size | 18X18inch | |
| Double Grid | Size | 18X18inch |
| Ratio | 1:1 | |
| F.D. | 100cm | |
| Density | 40 L/cm | |
