Description
|
Model
|

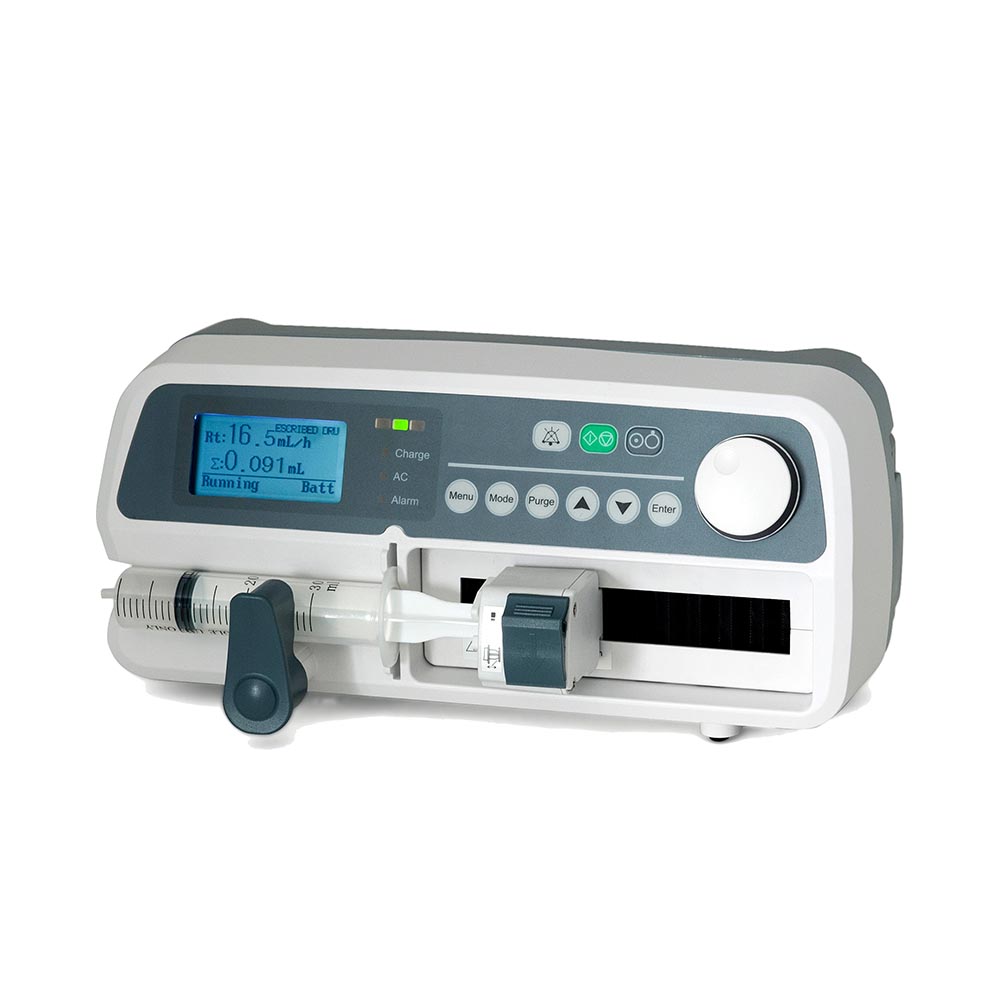

WK-602 Syringe Pump
|
|
Syringe Size
|
10, 20, 30, 50 ml
|
|
Applicable Syringe
|
2 brands built-in (BD, B. Braun), 10 brands for user-defined
|
|
Volume
|
0.1- 9999 ml
<1000 ml in 0.1 ml increments ≥1000 mL in 1 ml increments |
|
Flow Rate
|
Syringe 10 ml: 0.1- 400 ml/h
Syringe 20 ml: 0.1- 600 ml/h Syringe 30 ml: 0.1- 900 ml/h Syringe 50 ml: 0.1-1300 ml/h <100 ml/h in 0.1 ml/h increments or decrements ≥100 ml/h in 1 ml/h increments or decrements |
|
Bolus Rate
|
Syringe 10 ml: 400 ml/h
Syringe 20 ml: 600 ml/h Syringe 30 ml: 900 ml/h Syringe 50 ml: 1300 ml/h |
|
Accuracy
|
±2%
|
|
Infusion Mode
|
Flow rate: ml/min, ml/h
Time-based Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h |
|
KVO Rate
|
0.1 -1ml/h in 0.1 ml/h increments or decrements, adjustable
|
|
Alarms
|
Occlusion, syringe drop off, near empty, end program, low pressure, end battery, AC power off, motor malfunction, unattended pump,
syringe moved accidently, pressure sensor error |
|
Additional Features
|
Syringe identification, bolus, real-time shift totals, occlusion pressure release, mute, automatic power switching, residue
reminder, system memory |
|
Occlusion Sensitivity
|
High: 0.02-0.06 Mpa
Medium: 0.06-0.09 Mpa Low: 0.09-0.12 MPa |
|
Power Supply, AC
|
110/230 V (optional), 50/60 Hz, 20 VA
|
|
Battery
|
9.6 ±1.6 V, rechargeable
|
|
Battery Life
|
5 hours at 5 ml/h
|
|
Working Temperature
|
5- 40°C
|
|
Relative Humidity
|
20-90%
|
|
Atmospheric Pressure
|
860-1060 hpa
|
|
Size
|
314*167*140 mm
|
|
Weight
|
2.5 kgs
|
|
Safety Classification
|
Class II, type CF
|
|
Size
|
174*126*215 mm
|
|
Weight
|
2.5 kg
|
|
Safety Classification
|
Class Ⅰ, type CF
|
