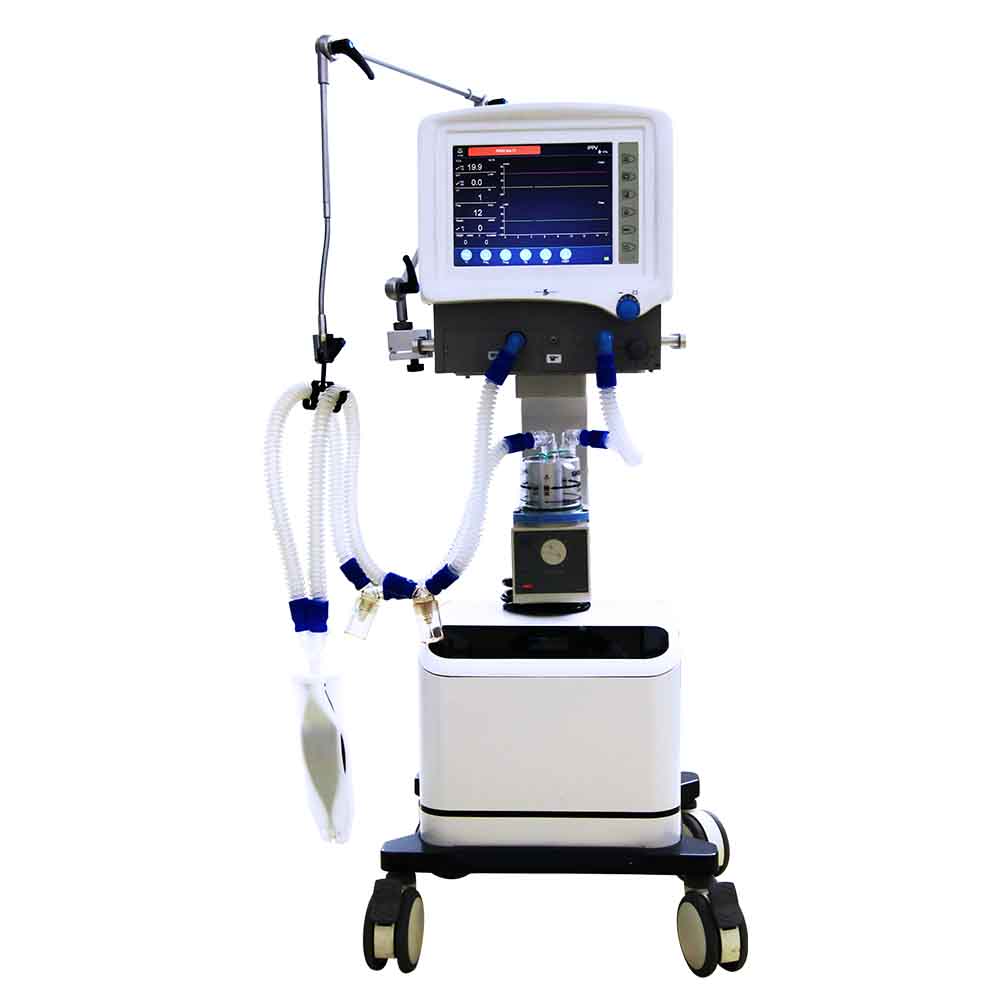

S1500 ICU ventilator for emergency aid
Features
1- 12.1” TFT screen displays the ventilation parameters, alarm information, and oscillograms, make every operation more easily.
2- Multiple ventilation mode can meet different clinical requirements ( IPPV, A/C, SIMV, PCV, PSV, SPONT/CPAP, SIGH, MANUAL)
3- Multiple parameters monitoring interface,make every parameter clear for users to know patient condition in all respects.
4- P-T, F-T, P-V loop oscillograms and high precision oxygen concentration detection function included.
5- Humidifier can heat and wet breathing gas, makes it comfortable for patient to breathe.
6- Rapid oxygen supply,automatically offer high flow rate oxygen within two minutes
7- High temperature resistance breathing circuit is reusable and anti-pollution.
Description
|
Specifications
|
Ventilation modes: IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV, SIGH, MANU
Ventilator parameter ranges
Tidal volume(Vt) 0 mL ~ 2000 mL
Frequence(Freq) 1bpm ~ 100 bpm
I/E 4:1~1:8
PEEP 0cmH2O ~ 40 cmH2O
Pressure Limit 20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq) 0 /min ~ 100 /min
Tidal volume(Vt) 0 mL ~ 2500 mL
MV 0 L/min ~ 99 L/min Airway pressure 0 cmH2O ~ 100 cmH2O Dynamic lung compliance testing 1mL/cmH2O ~ 1000mL/cmH2O ETCO2 Concentration 0mmHg ~ 152mmHg (0%-20%)
Oxygen concentration 15 % ~ 100 %
Graphical display: Oxygen concentration
Size:Wooden case packing size:670*700*1160mm /80KG
Alarm and protection
The AC power failure alarm Power failure or no connection
High oxygen concentration alarm 19%-100%
Low oxygen concentration alarm 18%-99%
High Airway pressure alarm 20cmH2O-100cmH2O
Low Airway pressure alarm 0cmH2O-20cmH2O
High Minute Volume alarm 5L/min-99L/min
Low Minute Volume alarm 1L/min-30L/min
Continuous Pressure alarm (PEEP+1.5kPa) over 16s
Suffocation warning 5s-60s
The maximum limited pressure <12.5 kPa
Fan error Show on screen
Oxygen deficit Show on screen
Working conditions
Gas source O2,AIR
Pressure 280kPa-600kPa
Voltage -220V±22V
Power frequency 50Hz±1Hz
Input power 900VA(with air compressor)
250VA(without air compressor) |
